Cometabolic biodegradation of environmental pollutants is a non-growth linked biological process catalyzed by microorganisms. During this process, microorganisms use non-specific enzymes to degrade environmental pollutants that do not support microbial growth. Since the microorganisms do not rely on the pollutants for growth, the cometabolic degradation of environmental pollutants has the potential to achieve desirable cleanup endpoints (< parts per trillion)[1]. This non-growth linked microbial degradation mechanism is significant in degrading environmental pollutants in both natural habitats and engineered bioremediation systems.

Related Article(s):


Contributor(s): Dr. Kung-Hui (Bella) Chu


Key Resource(s):

Introduction

Cometabolism is best defined as “the transformation of a non-growth substance in the obligate presence of a growth substrate or another transformable substance”[2]. This definition describes co-oxidation and/or co-reduction of a substrate mediated by whole cells using existing non-specific enzymes, yet the cells are unable to obtain energy or nutrients from the transformation of the substrates to support microbial growth.

The cometabolic degradation phenomenon was first reported in 1958, observing that methane-utilizing bacterium Pseudomonas methanica (renamed as Methylomonas methanica) could oxidize ethane and propane, but was unable to use these compounds as a carbon and energy source[1]. Methane is a growth substrate for the methane-oxidizing bacterium, while ethane and propane are co-metabolic substrates. Subsequent studies have found that methanotrophs can cometabolically transform polycyclic aromatic hydrocarbons (PAHs), explosives, dioxane, polychlorinated biphenyls (PCBs), pesticides, and methyl tertiary-butyl ether (MTBE)[2]. In addition to methane-oxidizing bacteria, many other microorganisms, particularly oxygenase-expressing cultures, could cometabolically degrade persistent man-made compounds like chlorinated pesticides, halogenated aliphatic, and aromatic compounds[4][5].

Mechanisms of Cometabolism

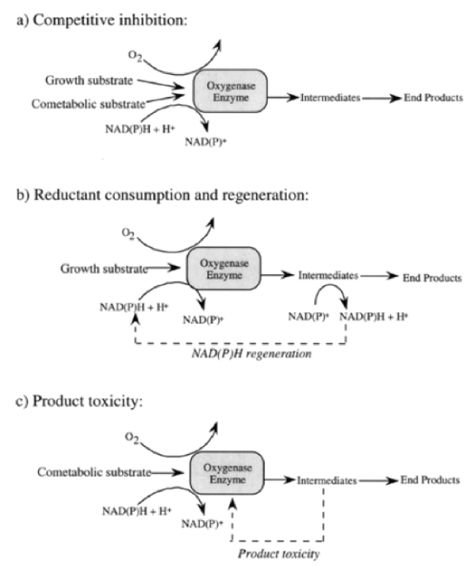

Figure 1. Generic oxygenase enzyme reactions with NAD(P)H serving as reductant. Schamatics illustrate: (a) competitive inhibition between growth and cometabolic substrates, (b) reductant consumption and regeneration during growth substrate metabolism, and (c) product toxicity exerted by transient intermediates of cometabolic substrate oxidation (reproduced with permission from ©2001 Springer[3]).

Numerous oxygenase enzymes, including but not limited to methane-, ammonia-, propane-, butane-, alkane-, and toluene-oxygenases, are known for their ability to degrade xenobiotic compounds cometabolically[4]. Among oxygenases reported, methane monooxygenase (MMO) expressed by methane-oxidizing bacteria (i.e., methanotrophs) is one of the well-studied oxygenses[5]. Methanotrophs can express two types of MMOs, particulate (pMMO) and soluble (sMMO). Compared to pMMO, sMMO has a broader substrate range and is known for its ability to degrade various environmental contaminants with some of the most persistent organics like pesticides, halogenated aliphatic and aromatic compounds[6].

During cometabolic degradation of trichloroethylene (TCE; a chlorinated solvent), methanotrophs use MMO to oxidize both methane (growth substrate) and TCE (co-metabolic substrate) with an expense of a reducing energy, reduced nicotinamide adenine dinucleotide (NADH), and oxygen. During methane oxidation, MMO will first convert methane to methanol, which is further oxidized to formaldehyde, formate and then carbon dioxide, resulting in a net production of reducing energy (NADH) and metabolites (formaldehyde and/or CO2) available for microbial cell growth.

As MMO is responsible for both methane and TCE oxidation, competitive inhibition of TCE degradation has been observed in the presence of methane (Fig. 1a). Different from methane oxidation, TCE is oxidized to TCE epoxide, which is quickly hydrolyzed to chlorine and carbon dioxide, resulting a net loss of reducing energy (Fig. 1b). Another unfavorable consequence is product toxicity- metabolites like TCE epoxide cause damage to cells and the degradative enzymes – limiting the amount of TCE can be biotransformed per cell (Fig. 1c)[7]. As such, if the cells contain a higher content of internal reducing energy power like polyhydroxybutyrate (PHB), a maximum transformation capacity of TCE per cell will be achieved[8]. In general, the kinetic and extent of cometabolic degradation varied depending on the types of cometabolic substrates, species involved in the degradation, the nature of the product toxicity, as well as the availability of the internal reducing energy pool of the degradative species. There are several kinetic models available describing cometabolism, from the prospect of competitive inhibition between growth substrate (primary substrate) and cometabolic substrate, consideration of cell growth versus product toxicity, and reducing energy consumption during cometabolic degradation[9].

Application of Cometabolic Biodegradation for Environmental Pollutants

Aerobic and anaerobic cometabolic bioremediation have been applied under different environmental conditions to remove contaminants including chlorinated solvents, MTBE, TNT, BTEX, and atrazine[10]. Methanotrophic-based, large-scale bioremediation for chlorinated solvents (like TCE) has successfully demonstrated[10]. There are several common classes of environmental pollutants that can undergo cometabolic degradation by various bacteria under aerobic and anaerobic conditions (Table 1). New studies also reported cometabolic degradation of emerging contaminants including MTBE[11], 1,2,3-trichlopropane (TCP), 1,4-dioxane[12][13], N-nitroso-dimethylamine (NDMA), and poly-fluoroalkyl substances like fluorotelomer alcohols[14][15][3], and some of this knowledge has been applied to remediation in the field in recent years.

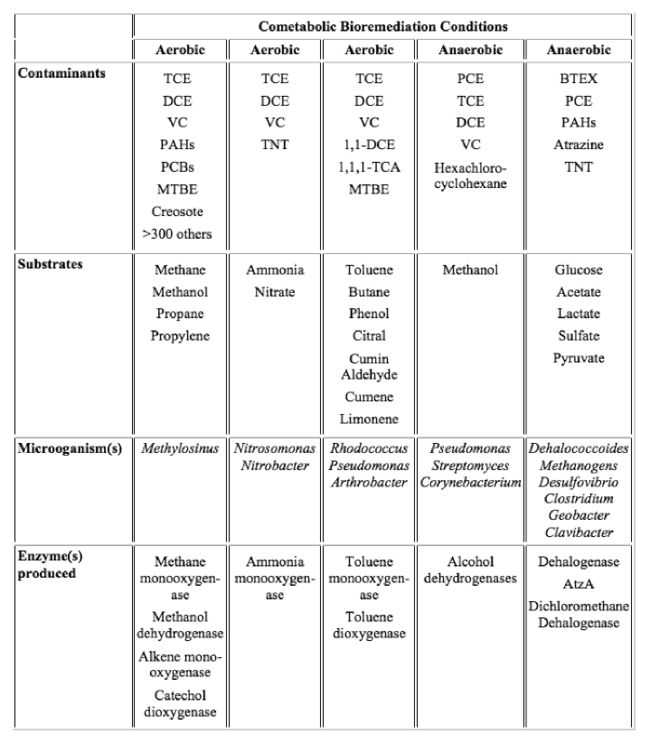

Table 1. Cometabolic degradation of example pollutants under various conditions (modified from Hazen (2010)[1]).

Cometabolic Degradation of Emerging Contaminants and Other Trace Organics

According to US Environmental Protection Agency (EPA), an emerging contaminant is defined as “a chemical or material characterized by a perceived, potential, or real threat to human health or the environment or by a lack of published health standards”[16]. A number of technical fact sheets of emerging contaminants, including TCP, 1,4-dioxane, NDMA, and hexahydro-1,3,5-trinitro-1,3,5-triazine (RDX) are available from the US EPA’s website to guide detection, analysis, and treatment of these emerging contaminants. Other emerging contaminants, such as poly-and per-fluoroalkyl substances (PFAS), pharmaceuticals and personal care products (PPCPs), and endocrine-disrupting compounds (EDCs) have also been the focus of intense research by scientists and engineers in recent years. Many of these emerging contaminants are also recalcitrant, but are subjected to cometabolic degradation by many different microbial strains under diverse conditions. Below is a brief description of studies reporting cometabolic degradation of selective emerging contaminants:

  • 1,2,3-Trichlopropane (TCP). TCP is a chlorinated hydrocarbon with high chemical stability. It is commonly detected in groundwater and soil, due to improper disposal. TCP is also a by-product or an intermediate in the production of various chemicals. EPA has classified TCP as a suspected carcinogen to humans. An early study has showed that methane-oxidizing bacteria can degrade TCP cometabolically[17]. A more recent study also reported that some propane-oxidizing bacteria can cometabilize TCP effectively[18].
  • 1,4-Dioxane. 1,4-Dioxane is a likely human carcinogen and has been detected in groundwater at many sites. It is used as a solvent stabilizer in the manufacture and processing of paper, cotton, textile products, auto coolants, cosmetics, and shampoo. 1,4-dioxane can be degraded via both growth-linked[19][20]</ref> and cometabolic reactions[12]. Many oxygenase-expressing bacteria are able to degrade 1,4-dioxane to different degree under different physiological conditions.
  • Poly- and per-fluoroalkyl substances (PFAS). Perfluoroalkyl compounds, particularly PFOA and PFOS, are not biodegradable under both aerobic and anaerobic conditions. However, poly-fluoroalkyl substances, like fluorotelomer alcohols (FTOHs) used as starting materials for many fluorotelomer-based products, are biodegradable and considered as precursors to perfluoroalkyl acids[21]. A number of studies have demonstrated that FTOHs, including 8:2, 6:2 and 4:2 FTOHs, and FTOH-based surfactants like polyfluorinated alkyl phosphate esters and fluorotelomer sulfonates are comtabolically biotransformed into various shorter chain PFASs in soils, activated sludge, and by pure cultures[15][3][20][22][23][24].

Implications for Remediation

The role of cometabolism in nature is significant for the natural attenuation of environmental pollutants[4]. For example, there are successful applications of cometabolic bioremediation for different environmental pollutants][2]. One major advantage of using cometabolic-based bioremediation is to enable degradation of pollutants at low concentrations and potentially achieve environmental cleanup goals. The knowledge of cometabolic degradation for emerging contaminants continues to grow and accumulate, and the anticipated cleanup endpoints for the emerging contaminants are very low (in the range of ng/L). Accordingly, cometabolic degradation process for emerging contaminants, either through natural attenuation or during active engineered bioremediation, can be a promising strategy to manage the associated risks.

References

  1. ^ 1.0 1.1 1.2 1.3 Hazen, T.C., 2010. Cometabolic Bioremediation. In: Timmis K.N. (eds) Handbook of Hydrocarbon and Lipid Microbiology. Springer Berlin Heidelberg, 2505-2514. doi: 10.1007/978-3-540-77587-4_185
  2. ^ 2.0 2.1 2.2 2.3 Dalton, H., Stirling, D.I. and Quayle, J.R., 1982. Co-metabolism (and discussion). Philosophical Transactions of the Royal Society of London. Series B, Biological Sciences, 297(1088), 481-496. doi: 10.1098/rstb.1982.0056
  3. ^ 3.0 3.1 3.2 3.3 Alvarez-Cohen, L. and Speitel Jr, G.E., 2001. Kinetics of aerobic cometabolism of chlorinated solvents. Biodegradation, 12(2), 105-126. doi: 10.1023/A:1012075322466
  4. ^ 4.0 4.1 4.2 Janke, D. and Fritsche, W., 1985. Nature and significance of microbial cometabolism of xenobiotics. Journal of Basic Microbiology, 25(9), 603-619. doi: 10.1002/jobm.3620250910
  5. ^ 5.0 5.1 Hanson, R.S. and Hanson, T.E., 1996. Methanotrophic bacteria. Microbiology and Molecular Biology Reviews, 60(2), 439-471. doi:10.1128/mr.60.2.439-471.1996 Article pdf
  6. ^ CLU-IN EPA, Bioremediation: Cometabolic Aerobic and Anaerobic Bioremediation. EPA Bioremediation
  7. ^ Deeb, R.A., Scow, K.M. and Alvarez-Cohen, L., 2000. Aerobic MTBE biodegradation: an examination of past studies, current challenges and future research directions. Biodegradation, 11(2-3), 171-185. doi: 10.1023/a:1011113320414
  8. ^ Mahendra, S. and Alvarez-Cohen, L., 2006. Kinetics of 1, 4-dioxane biodegradation by monooxygenase-expressing bacteria. Environmental Science & Technology, 40(17), 5435-5442. doi: 10.1021/es060714v
  9. ^ Masuda, H., McClay, K., Steffan, R.J. and Zylstra, G.J., 2012. Biodegradation of tetrahydrofuran and 1, 4-dioxane by soluble diiron monooxygenase in Pseudonocardia sp. strain ENV478. Journal of Molecular Microbiology and Biotechnology, 22(5), 312-316. doi: 10.1159/000343817
  10. ^ 10.0 10.1 Hand, S., Wang, B. and Chu, K.H., 2015. Biodegradation of 1, 4-dioxane: Effects of enzyme inducers and trichloroethylene. Science of The Total Environment, 520, 154-159. doi: 10.1016/j.scitotenv.2015.03.031
  11. ^ Kim, M.H., Wang, N. and Chu, K.H., 2014. 6: 2 Fluorotelomer alcohol (6: 2 FTOH) biodegradation by multiple microbial species under different physiological conditions. Applied Microbiology and Biotechnology, 98(4), 1831-1840. doi:10.1007/s00253-013-5131-3
  12. ^ 12.0 12.1 Lewis, M., Kim, M.H., Liu, E.J., Wang, N. and Chu, K.H., 2016. Biotransformation of 6: 2 polyfluoroalkyl phosphates (6: 2 PAPs): Effects of degradative bacteria and co-substrates. Journal of Hazardous Materials, 320, 479-486. doi: 10.1016/j.jhazmat.2016.08.036
  13. ^ Lewis, M., Kim, M.H., Wang, N. and Chu, K.H., 2016. Engineering artificial cs in Microbiology, 24(4), 335-373. doi: 10.1080/10408419891294217
  14. ^ Chu, K.H. and Alvarez-Cohen, L., 1999. Evaluation of toxic effects of aeration and trichloroethylene oxidation on methanotrophic bacteria grown with different nitrogen sources. Applied and Environmental Microbiology, 65(2), 766-772. doi: 10.1128/AEM.65.2.766-772.1999 Article pdf
  15. ^ 15.0 15.1 Chu, K.H. and Alvarez-Cohen, L., 1998. Effect of nitrogen source on growth and trichloroethylene degradation by methane-oxidizing bacteria. Applied and Environmental Microbiology, 64(9), 3451-3457. doi: 10.1128/AEM.64.9.3451-3457.1998 Article pdf
  16. ^ US EPA Fact sheets about Emerging Contaminants. EPA 505-F-14-002. (Accessed October 27, 2016). US EPA Emerging Contaminants
  17. ^ Bosma, T. and Janssen, D.B., 1998. Conversion of chlorinated propanes by Methylosinus trichosporium OB3b expressing soluble methane monooxygenase. Applied Microbiology and Biotechnology, 50(1), 105-112. doi: 10.1007/s002530051263
  18. ^ Chu, K. H., 2012. Biodegradation of 1,2,3-Trichloropropane, Texas Hazardous Waste Research Center Report, Project Report Number 060TAM2993.
  19. ^ Kim, Y.M., Jeon, J.R., Murugesan, K., Kim, E.J. and Chang, Y.S., 2009. Biodegradation of 1, 4-dioxane and transformation of related cyclic compounds by a newly isolated Mycobacterium sp. PH-06. Biodegradation, 20(4), 511-519. doi: 10.1007/s10532-008-9240-0
  20. ^ 20.0 20.1 Parales, R.E., Adamus, J.E., White, N. and May, H.D., 1994. Degradation of 1, 4-dioxane by an actinomycete in pure culture. Applied and Environmental Microbiology, 60(12), 4527-4530. doi:10.1128/aem.60.12.4527-4530.1994 Article pdf
  21. ^ Parsons, J.R., Sáez, M., Dolfing, J. and de Voogt, P., 2008. Biodegradation of perfluorinated compounds. In Reviews of Environmental Contamination and Toxicology, Springer US, 196, 53-71. doi: 10.1007/978-0-387-78444-1_2
  22. ^ Wang, N., Szostek, B., Buck, R.C., Folsom, P.W., Sulecki, L.M., Capka, V., Berti, W.R. and Gannon, J.T., 2005. Fluorotelomer alcohol biodegradation direct evidence that perfluorinated carbon chains breakdown. Environmental Science & Technology, 39(19), 7516-7528. doi: 10.1021/es0506760
  23. ^ Kim, Y.M., Jeon, J.R., Murugesan, K., Kim, E.J. and Chang, Y.S., 2009. Biodegradation of 1, 4-dioxane and transformation of related cyclic compounds by a newly isolated Mycobacterium sp. PH-06. Biodegradation, 20(4), 511-519. doi: 10.1007/s10532-008-9240-0
  24. ^ Wang, N., Liu, J., Buck, R. C., Korzeniowski, S. H., Wolstenholme, B. W., Folsom, P. W., Sulecki, L. M., 2011. 6:2 Fluorotelomer sulfonate aerobic biotransformation in activated sludge of waste water treatment plants. Chemosphere, 82(6), 853-858. doi: 10.1016/j.chemosphere.2010.11.003
